The Double "DSV" Fit Out - All Utes

$3,899.00
Tax included.
By Judge & Company
Minus Plus



DSV — The Ultimate Drawer, SLED & VERT Combo



Versatile. Secure. Smart.



The DSV combines any of our drawer systems with a 750mm-wide SLED and our snazzy VERT drawer, delivering the ultimate in secure, organised storage.


The VERT drawer features a clever vertical pull-out design, more like shelving than a traditional drawer. Inside, you’ll find two levels — each around 190mm deep and 1145mm long — perfect for stacking and storing all those smaller items that tend to disappear in larger compartments.


Open your gullwing canopy window and you’ll also see a spacious base storage area and two additional shelves above — loads of room for gear that needs to be both accessible and tidy.


Any Drawer System, Your Way



We can build a DSV using any of our drawer systems as the base:



  • DOUBLE & TRIPLEDOUBLE (standard or JUMBO)

  • SUPERSINGLE

  • SINGLE

  • CASEBOX



The SLED mounts directly to the tray floor next to the drawer, creating a smart and efficient layout tailored to your needs.



Why Choose the DSV?



With so many configurations possible, the DSV is a brilliant “off-the-shelf” option for tradies, campers, and anyone who needs versatile, secure, and easily accessible storage.



We haven’t listed every possible combination here, so if you’d like to explore all the options available for your vehicle, please don’t hesitate to contact us — we’re happy to help create the perfect setup for you.



IMAGE LIST

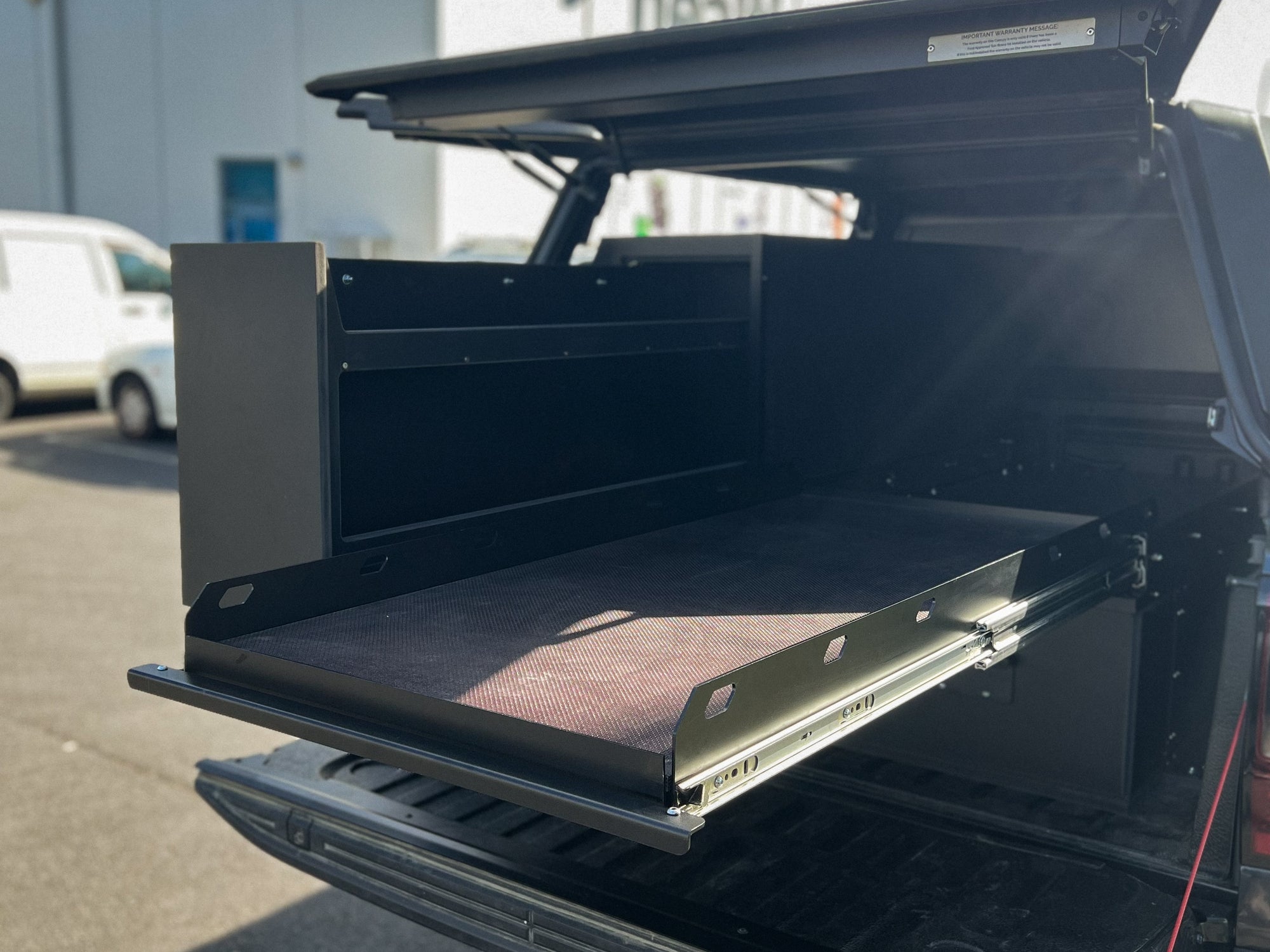

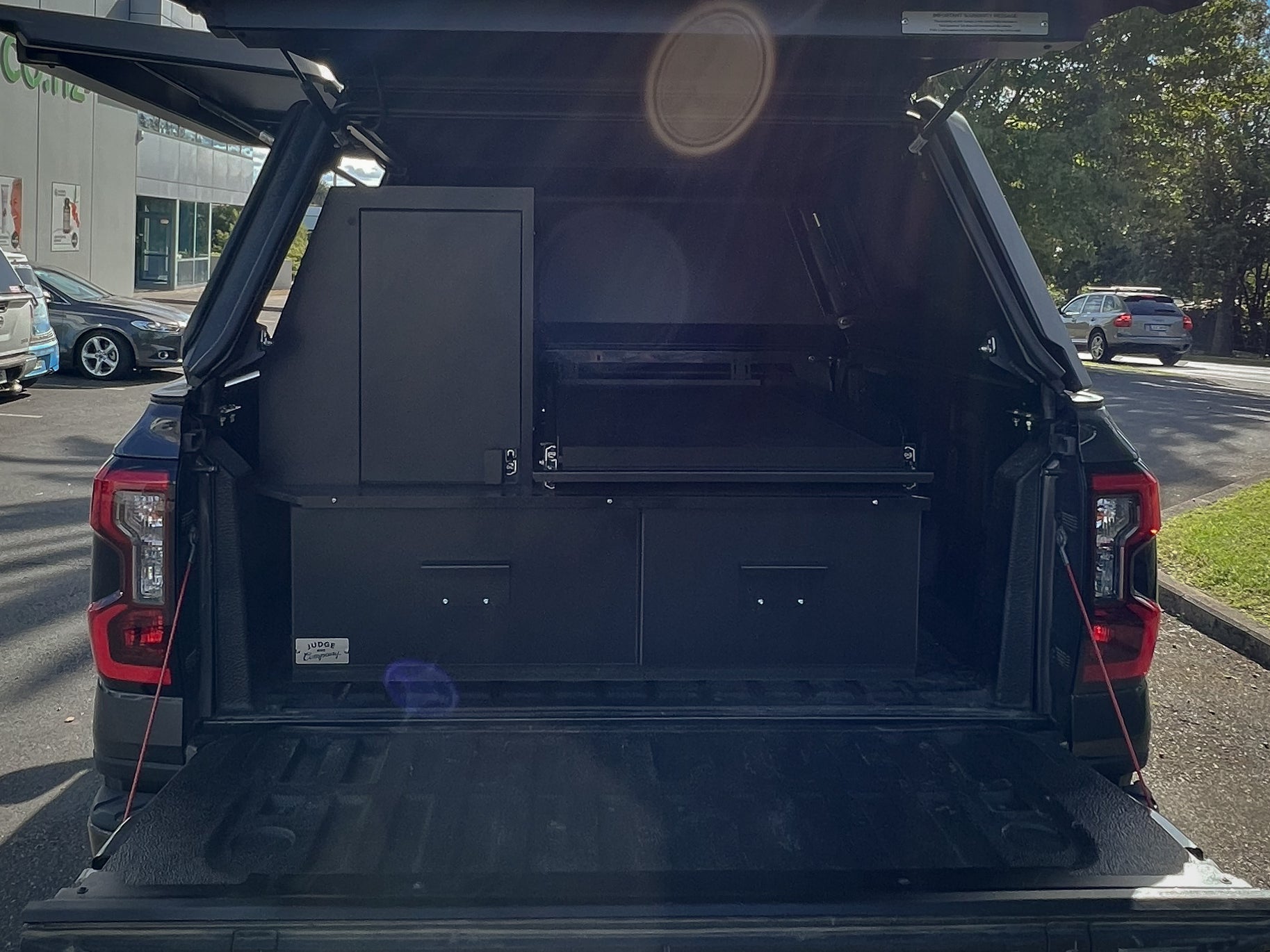

Image 1 & 2 - DSV 235HDR, reversed VERT Toyota Hilux N80

Image 3 & 4 - DSV TRIPLEDOUBLE 285/140 Navara NP300

Image 5-7 - DSV DOUBLE "CASEBOX" 300NR Ranger "next gen"

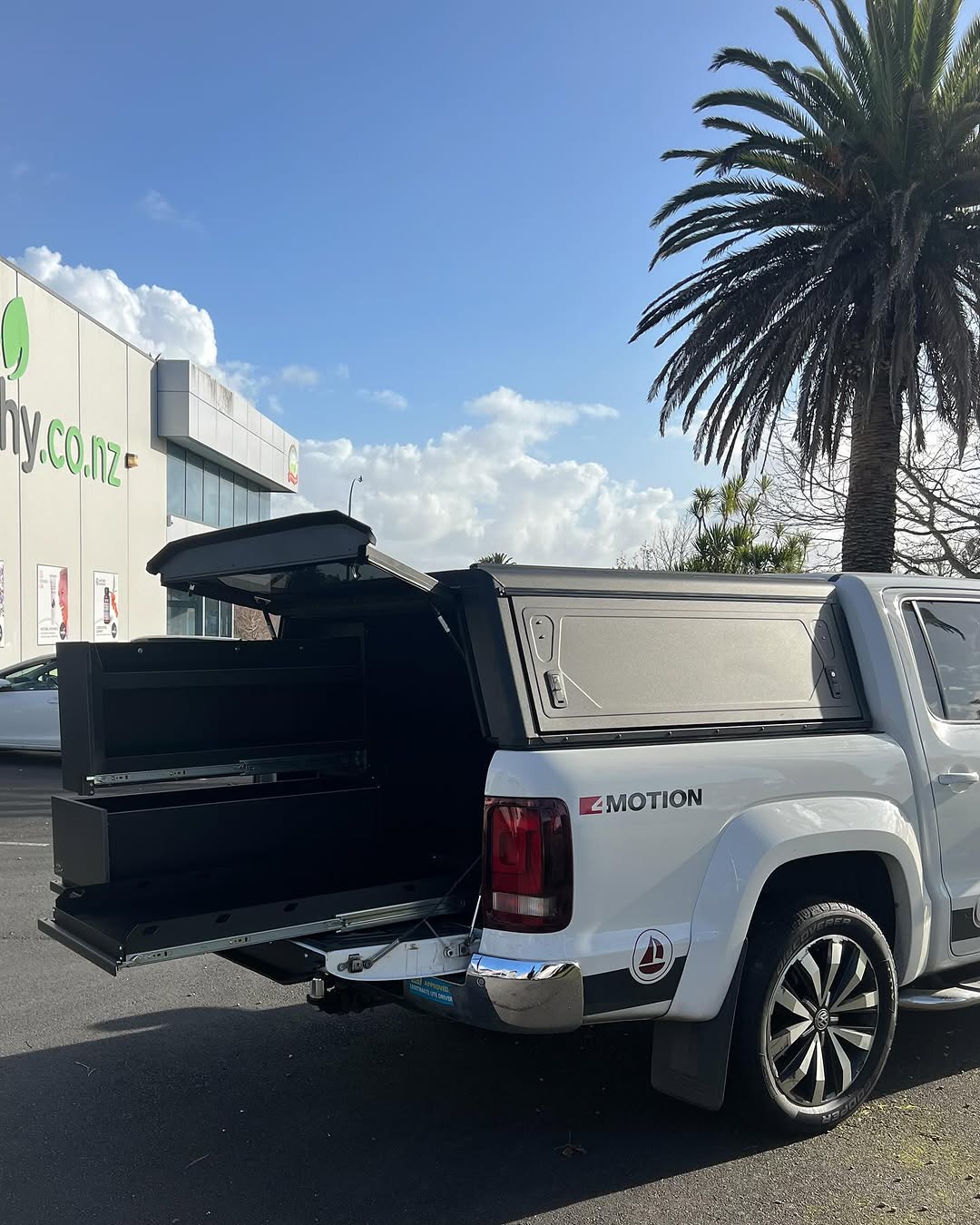

Image 8 & 9 - DSV SINGLE 285HDR  VW Amarok



Universal Fitment


Our drawer systems are designed to fit all makes and models of Dual Cab Utes as standard.


For Extra Cab and full-size American Utes, please get in touch with us for tailored pricing and options.





Supported Models:



  • Ford Ranger (Next Gen uses JUMBO width)

  • Toyota Hilux

  • Nissan Navara

  • Mitsubishi Triton

  • Mazda BT-50

  • Isuzu D-Max

  • VW Amarok (Next Gen uses JUMBO width)

  • BYD Shark 6 (uses JUMBO width)

  • LDV T60

  • SsangYong Rhino

  • GWM Ute

  • USA-made trucks — Ford, Dodge, Chevrolet (all use JUMBO EXTRA sizing)



For any questions about fitment or to discuss your specific vehicle, contact us here.


Specifications



  • The drawer and carcass are built from precise, CNC-cut 16mm black PVC board, manufactured using a compressed and extruded process.

  • Our drawer sets are NOT made from plywood — unlike plywood, our material is moisture-resistant, doesn’t splinter or split, is extremely durable yet lightweight, and boasts a sleek, subtle black finish.

  • Heavy-duty 227kg-rated runners are used, providing full extension up to 1200mm.

  • The convenient one-hand handle activates and deactivates the runners, which lock in three positions: closed, mid-extension, and fully extended.

  • Drawer dividers are included, which can be installed wherever you need.

  •

    All necessary mounting hardware is supplied.



Topper Construction



  • The false floor (Topper) is engineered to handle plenty of rough use, made from 12mm HEXAply transport-grade plywood — extremely hard-wearing, water-resistant, and easy to clean, with fully sealed edges.

  • The perimeter Cargo Bar, extending across the rear and sides of the Topper, is laser-cut and CNC-folded 3mm aluminium, finished in a durable, scratch-resistant textured black powder coating.



Dimensions



  • Topper Dimensions:

    1395mm (L) x 1440mm (W)

  • Internal Drawer Dimensions – JUMBO DOUBLE:

    1165mm (L) x 500mm (W)

    Available depths: 155mm, 235mm, 285mm, or 335mm (D)





Installation



  • Installation from our Auckland and New Plymouth workshop is available for just $99.

    If you’re not based in Auckland but are happy to come to us, simply select “Local Pick-up” as your shipping method at checkout, and we’ll take care of the rest.

  • Installation through any of our retail partner locations is also available. Please note that installations at partner locations will incur additional shipping and installation charges, which may vary by partner.



You can find a list of our retail partners here.





Shipping



If you can’t make it to our workshop or one of our retail partners, we can pack and freight your setup to the nearest Mainfreight depot or directly to a commercial address.



Flat “To Depot” Rates:



  • North Island: $140

  • South Island: Please contact us, rates largely vary depending on the region.



For direct delivery to a commercial address, please chat with us first so we can confirm the options and provide accurate pricing.


Please note: our pallets are relatively large, so ensure you have adequate space and transport arranged when collecting your order.





Ordering



You can place your order:



  • Through our online store

  • Over the phone

  • Or in person at our workshop or one of our retail partner locations


We’re always happy to chat before you place an order — especially if you have specific layout ideas or unique requirements. Feel free to give us a call to discuss options.



If ordering online:



  • Please include your vehicle make/model and phone number in the ‘Add a note’ box at checkout.

  • Make sure to also enter your email address, so we can reach you with updates.

  • If we haven’t already spoken before you place your order, we’ll follow up via email with the expected turnaround time and details about invoicing.



To secure your spot in our production and installation queue, a 50% deposit will be required.
